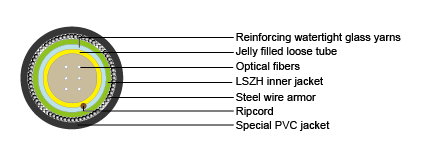

Steel Wire Armored Optical Fiber Cable
Applications
These cables are suitable for underground use in industries. The special PVC sheath resists aliphatic and
aromatic hydrocarbon and U.V.
Standards
IEC 794-1-E1; IEC 794-1-E3; IEC 794-1-E4; IEC 794-1-F1; IEC 60332-3-22 Cat.A
Properties
Operating temperature: -20~60°C Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
| No. of Optical Fiber | Fiber Optic Type | No. of Tube | Diameter over Inner Sheath (mm) | Diameter over Armor (mm) | Min. O.D. (mm) | Max. O.D. (mm) | Approx. Weight (kg/km) |
| 4 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 4 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 6 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 6 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 8 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 8 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 8 | 9/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 12 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 12 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 12 | 9/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 16 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 24 | 50/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
| 24 | 62.5/125 | 1 | 6.6 | 8.4 | 10.8 | 12 | 235 |
